In Praise of Puukko and Mora

On a number of occasions, I have talked about my favourite kukri (I own a few!). This is a ten inch sirupate with a half‑guard and a lengthened grip. This is the tool I will grab when SHTF.
What I have not so far discussed is that my kukri is just one half of a double act. It has a Companion!
With the kukri, I carry a small, fixed blade knife. Both are fitted to the same belt, along with a small pouch containing a fire kit and a sharpening stone. Note wrist loops that may be attached to the snap-links to further prevent the chance of loss.
Kukri, Mora Companion and Fire Kit.

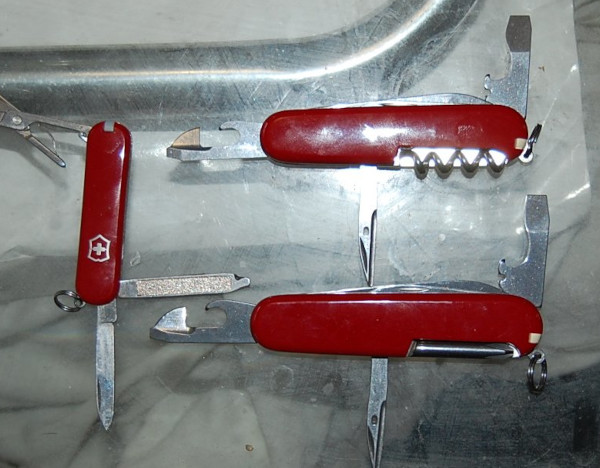

I always have my Swiss Army Knife and mini-Leatherman on me, of course. A small fixed blade is handier, and easier to get clean after a messy task like gutting a fish.
The rationale behind having a pair of fixed blade knives is thus:
Most cutting tasks do not need a large knife. Most such cutting tasks are easier and safer with a small knife. This helps save the edge of the large knife for uses that it is really needed for.
A shorter blade and lighter knife often provides a greater level of control and precision.
A large knife can perform many of the duties of a small knife, but a small knife cannot entirely substitute for a larger blade.
Since the small blade will spend more time out of its sheath than the larger, in theory I am less likely to lose my larger blade. I can manage without the small knife better than I would manage without the larger.

Puukko

When it comes comes to useful small blades, one of the examples that comes to mind is the Finnish puukkot (singular is “puukko”).
Puukkot are about as common as snow in Finland.
Puukkot come in a variety of sizes, but the most commonly encountered are blades of 75 to 100 mm length.
Large production runs and informed buyers means puukkot are produced with good quality blades at reasonable prices. Reasonable in Scandinavia, at least. Crossing the water bumps the price up, but they are still very good knives for the money.
“Fica” knives were apparently once popular with some Russian criminal elements. This is claimed to have inspired the Soviet NR-40 knife. (With its clip point and inverted main edge, the NR-40 has some resemblance to British knuckle-duster knives used in World War One and the Second World War BC41 knife.)
Many puukkot are works of art. Some have handles carved from “curly birch”. Another grip construction utilizes stacks of washers made from reindeer skin or birch bark.
Unmounted puukkot blades are available from some suppliers. If you fancy making your own sheath and grip, I recommend Bo Bergman’s book “Knifemaking”. Not only highly informative, but beautifully photographed and recommended for knife-lovers and other hoplophiles.
I have not yet been to Finland.
I picked up this pair of knives on my last days in Denmark.
Puukko knife and Mora
The upper example is Finnish, I believe. The grip is curly birch, with a touch of linseed oil to bring out the grain. Note the button hole in the hanger.
Finnish Puukko hanger button hole
For ease of access, puukkot are often carried suspended from the button of a breast pocket on a shirt or jacket.
This knife is also a good size to fit in a cargo trousers’ thigh pocket. Useful if camping in areas where simpletons will freak out if you wear a belt knife openly.
Note also that these knives usually use a deep sheath that covers most of the grip. Such a sheath is very secure, but does limit the provision of a guard.

Mora Knives

I didn’t know it at the time, but the second knife is Swedish, and made by Mora.
Mora (aka Morakniv) are a Swedish knife manufacturer, and their main products are puukko-type knives.
Whether a knife can be a puukko if it is made in Sweden, I will leave for others with more time on their hands to discuss.
Mass production means good quality at very reasonable prices, so Moras are the first choice for many when it comes to choosing a small, fixed blade knife.
Moras are probably at least equal to many knives that are more than five times the price.
The most obvious difference between most Moras and puukkot is that most Moras have handles and sheaths made using plastic rather than wood and leather.
My kukri is complimented by a Mora Companion (model number 860).
I gave another Companion to my girlfriend to compliment her kukri. The Mora proved useful when she was foraging in Sardinia. She also utilised it when gathering seafood when snorkelling. She particularly praised how securely the knife stays in its sheath.
The Companion has a ten centimetre stainless steel blade of a useful and proven configuration.
The plastic sheath is well designed and very secure.The knife positively locks in position and stays in the sheath until you want it. You can quite confidently wear the knife handle down.
A slight bump at the top of the sheath mouth is provided for the thumb to push against if drawing the blade single-handed. You can also push down on the top of the belt-hanger.
The belt hanger is provided with a cut-out for hanging from a button, and the sheath is provided with a drain hole. The hanger itself is a clip, so the sheath may be worn with clip slipped over the top of a pocket or over a jacket edge.
Companions are offered in a wide range of handle and sheath colours. Mine are in a drab green or sand‑colour. Brighter colours are available for those prone to misplacing items.
The Companion, and several other models are available with either stainless steel or carbon steel blades. My preference is for stainless steel, particularly if the knife is going to be stored in a kit and not inspected for some time. Stainless steel is also recommended for fishing knives or any other use that takes you close to salt water.
Carbon steel is better for throwing sparks from ferrite, but is more prone to rusting and discolouration if neglected.
I have various other objects that can throw a spark. My kukri has chakmak and karda. Spark striking is realistically a low priority or me since my EDC includes a butane lighter and there are two in the fire kit on the knife belt. I can even use the striker wheels of the lighters to strike sparks from ferrite rods.
The only modification the Companion really needs is to drill a hole for a wrist loop or lanyard. Since the blade has a rat-tail tang, adding such a channel is a quick and simple task.
A criticism sometimes levelled at puukkot is the transition between blade and grip. The forefinger could slip forward and be cut by the edge at the base of the blade. For most uses this is unlikely, but if in a hurry, forgetful or your hands are wet, is a possibility.
The plastic handled Mora’s include a finger guard, and their plastic sheaths are designed to accommodate this feature.
Some of you reading will be discouraged by the reasonable price of a Mora Companion. It cannot be that good a quality at such a low price!
Given how low the price is, I challenge those readers who think this to take a risk and buy yourself one. Then send me a cash donation as penance for doubting my word, shame on you!
Chances are you will probably invest in a couple more Moras. At these prices, you can stash a spare in your car, your tackle box and so on.

Mora Pro Robust

When I heard about the Mora Robust/Pro Robust, I was eager to get one.
It might be a good option for situations when I can only carry a single fixed blade knife.
Mora Companion, 511 and Pro Robust
I was expecting a heavier bladed version of the Mora Companion. In fact, the Robust is closer to being a heavier bladed version of my Mora 511 (above, top). The grip is the same shape, and both have 9 cm carbon steel blades. The Pro Robust is described as having a 3.2 mm thick blade while the 511 is listed as 2 mm.
The Pro Robust has a beautifully polished blade. I had elected my 511 as the “kitchen Mora” and used it for something without realising it was a carbon steel blade. Leaving it for a short period without cleaning and drying it has discoloured the finish. Won’t make the same mistake with the Pro Robust.
The Robust and 511 have a more pronounced half-guard than the Companion, and consequently the sheath is a little different. Different in details, but not in features and functionality.
Like the Companion, the Robust (and the 511) lock securely into their sheaths. I have been unable to shake it hard enough to persuade the knife to drop out. I will probably pop a joint before I shake it loose.
Rather than a bulge for the thumb to push against, the top of the sheath mouth has a ridged section for the thumb. The design of the button hanging feature is also different. The most obvious difference is the knob/mushroom structure on the front. A similar feature is seen on some bayonet scabbards and is used to secure the sheath in a frog. It is a convenient structure for the fingertip to push on when drawing the knife single-handed.
There is a thicker bladed version of the Companion available, but I have yet to acquire one. This has a 3.2 mm rather than 2.4 mm thick blade.

Scandi Edge

All of the Mora knives I have owned have arrived already sharp with a good edge. Eventually you will need to resharpen, however.
Traditionally, Scandinavian knives were sharpened with what has become known as a “Scandi edge” or “zero grind”.
What this means is that the primary edge and the bevel are the same. To sharpen, you lay the knife’s bevel flat on the sharpening stone and move the blade back (or forward), depending on your preferred sharpening style.
This is very easy to do, but involves removing a lot of steel with each sharpening. The scandi edge is claimed to produce a very strong edge, useful for some applications.
Modern blade steels tend to be harder and better quality than was available to previous generations, so there is reasonable doubt as to whether a scandi edge is the best choice for modern Mora and puukkot, especially those with laminate or stainless steel blades.
There are plenty of forums and videos on the pros and cons of the scandi edge, so decide for yourself what is best for you. Personally, I sharpen my Mora the same way as I sharpen my other blades.
Bergman’s book suggests sharpening blades with an angle of 10 to 30 degrees, depending on intended application.
For a general purpose knife I would suggest an angle of 22.5 degrees. If you lack a protractor or have trouble visualizing this, fold the corner of a piece of paper in half, then fold it in half again. A quarter of 90 degrees is 22.5.
The “kitchen Mora” responds well to the butcher’s steel I use on my other kitchen blades.
If you are looking for a special present for a knife-lover or outdoorsperson, a traditional puukko is worth considering. Something both beautiful and practical.
Morakniv, aka Frosts, make a wide range of other knives, for the kitchen, the outdoors and for the workshop.
Categories
Phillosoph

The Point of Bayonets

Reams have been written about the bayonet in the last one hundred years. Several US Army manuals begin by talking about “the Spirit of the Bayonet”. Much is written about the psychological effects training and using the bayonet is supposed to induce. We are even told “the bayonet is irresistible”.
As I noted in an earlier post, the practicality of the bayonet as a weapon was being questioned as early as the introduction of breech-loaders. Once machine guns became common, one would think the matter had been settled. Not so.

The Bayonet en Mass

Part of the problem with examining this topic is that many writers fail to distinguish between the use of the bayonet in massed charges and its use in personal combat.
Many bayonet manuals do not give much space to how a massed charge is to be actually conducted. Perhaps this was covered in other manuals. A US Army manual from 1916 informs troops that they should walk most of the distance to the enemy position so as not to unduly tire themselves. At 30-40 yards distance they may begin to move at double time, and rush the last few yards. A British manual from 1942 urges troops to approach the enemy position using all available cover. When reaching 20 yards distance, the unit was to form up for the charge and rush the final distance. When conducting massed charges it was felt important that a line formation was maintained. Given the effects of adrenaline and irregular terrain, this may not have been practical in many cases.
If one can approach to within 20 yards of an enemy position, there were probably better options than a bayonet rush. The position could be attached with multiple grenades, and automatic weapons used to sweep the visible sections of trench, for example.
Sir Basil H. Liddell Hart said:
“There are two thousand years of experience to tell us that the only thing harder than getting a new idea into the military mind is to get an old idea out.”
The conventional military mind seems to have retained its fascination with the bayonet charge long after such tactics should probably have been retired. Certainly bayonet charges have been used since the Second World War. Charges were used in the Falklands War, and in Afghanistan.

Hill 180 Korea

One of the last great bayonet charges, for American forces at least, was the bayonet charge by Easy Company, 27th Infantry Regiment, against Hill 180.
“Commentary on Infantry Operations and Weapons Usage in Korea, Winter of 1950-51” by SLA Marshall has a chapter on the utility of bayonets, and the following observations about the attack on Hill 180:
“The tactical omissions, which accompany and seem to be the emotional consequence of the verve and high excitement of the bayonet charge, stand out as prominently as the extreme valor of the individuals. . . The young Captain Millett, so intent on getting his attack going that he “didn’t have time” to call for artillery fires to the rearward of the hill, though that was the natural way to close the escape route and protect his own force from snipers who were thus allowed a free hand on that ground. . . His subsequent forgetting that the tank fire should be adjusted upward along the hill. . .The failure to use mortars toward the same object. . .The starving of the grenade supply, though this was a situation calling for grenades, and the resupply route was not wholly closed by fire. . .The fractionalization of the company in the attack to the degree where only high individual action can save the situation, and individual ammunition failures may well lose it.

It cannot be argued that bayonet charges have not worked. And yet, one cannot help but wonder just how many lives have been needless expended because a massed bayonet charge was attempted rather than other more practical options. For a young officer the bayonet charge seems a gamble between a medal or a court martial. If they survive.

Individual Bayonet Use

Let us move to the more practical topic of the use of the bayonet as a personal weapon. In the second edition of “Crash Combat” I suggest that the use of the bayonet, or other close combat means are only attempted if the threat is within three body lengths. If the distance is greater, seek cover, reload and shoot, or some other tactic.
Older manuals recommend the bayonet be used for night combat where muzzle flash might expose your location. It is also to be used in close quarter situations where any firing might endanger comrades.
Three to four kilos of rifle does not make an ideal spear handle. It is, however “what you got”.
To use a bayonet, you must have a bayonet. Most modern bayonets are overweight supposedly multi-purpose tools of little actual utility. Understandably, many soldiers have discarded them in favour of more useful blades.
I won’t discuss techniques for unbayoneted weapons, since these are covered in my books.

When to Fix Bayonets

Assuming you have one, when should you fix your bayonet? Wartime British manuals require the bayonet to be fitted whenever the enemy is within 300 yards. Sights for shorter ranges were set to compensate for the changes the fitted bayonet made on point of impact. The Russians took this further. During wartime the Mosin-Nagant was always fitted with its bayonet. A fitted bayonet is necessary to zero the sights.
In a more modern context, it may be prudent to fix bayonets if engagement range is less than 50 metres.

The Indoor Bayonet

A fixed bayonet may seem a handy thing to have when sweeping a house. As well as its defensive use it can probe under beds or into other dark places. Bert Levy comments that within a building, bayonets are more a hazard to comrades and likely to get frequently caught on furniture. Levy was probably referring to sword bayonets mounted on relatively long bolt-action service rifles. Experiments need to be conducted to determine the best ways for teams to move with modern bayoneted weapons within building interiors. Since shooting will remain the primary offensive mechanism, this will probably be a low-ready position, rather than the high-port usually required for moving with bayoneted weapons.

À la Bayonet

Recently I read an entertaining and informative paper on the bayonet. Unfortunately the author devotes a big chunk of his discussion to perpetuating the bayonet wound fallacy. Later in the paper he graphically describes how visceral and final an encounter involving bayonets may be. It does not occur to him that this may be related to why there are so few bayonet wounds in the field hospital. Most victims never make it that far! Near the end of the on-line version of the article he states: “The Military Manual of Self-Defence (55) offers a series of aggressive alternatives to traditional bayonet fighting movements, its focus more on disabling the opponent than parrying until a clean point can be made. While not necessarily offering a full replacement to classic bayonet training, it does show that more options exist.”
This did amuse me. Firstly, The Military Manual of Self-Defence (Anthony Herbert) unashamedly copies entire sections from other works. Most of the bayonet section is taken from “Cold Steel” by John Styers USMC. The illustrations even still look like Styers! Styers, in turn, drew directly from Biddle (“Do or Die”), who was an instructor for the USMC. This “untraditional” system was that taught to most marines.
There is also an amusing irony here. During his military service, Herbert was wounded fourteen times. Three of them were from bayonets!

Categories
Phillosoph

Stepping Back

Today I will look at another illustration from John Clements’ book on Medieval Swordsmanship.
This sequence shows how a downward strike is accompanied by a step forward with the right or rear foot, and the text describes how to resume the initial position (left). What I like about this is that if you view it right-to-left it equally illustrates a downward strike that follows stepping back with the left or lead leg. For example, an enemy targets your lead leg, so you step back to avoid the strike and simultaneously strike at his head. Striking low may have exposed the upper part of his body.
Medieval Sword and Shield describes a similar sequence, although this time the defender is in “half-shield” guard (above, left). Again, if the enemy strikes low, the targeted leg is brought back and the sword is brought down on the attacker.
Clements’ book makes a lot about the prevalence of leg wounds among the remains of the Battle of Visby. The above sequences suggest that attacking the legs was foolhardy, at least with shorter weapons such as swords. Some context helps us understand the discrepancy. The victorious Danish forces were mainly composed of professional soldiers and mercenaries. The Gutnish forces were primarily farmers, and only partially equipped with armour. It seems likely that professional fighters would readily exploit the defender’s lack of experience and equipment and target the legs. Whether such tactics were common in other battles against experienced fighters is open to debate.
The “step back while striking” drill has obvious applications to modern combat. If we do not hold a sword it can be adapted to other weapons or empty-handed techniques. In a previous post I have mentioned that the leg raising actions so typical of Scottish Highland dancing may have been training to take the leg out of the way of low strikes.
Many years ago I wrote about a very silly sequence that appears in some knife-fighting manuals. It should be apparent to readers that when an attacker threatens your leg, a more practical response will be to withdraw the leg and simultaneously strike at any target available, such as arm.
Categories
Phillosoph

Pec-Knives and the Gerber Strongarm

Pec-Knives

The pectoral position is a very useful position to carry a knife. It is accessible with either hand, and if the wearer is seated or prone. It can be readily utilized to cut a jammed seat harness, or when rolling on the floor with an aggressor.
This topic came up in one of my discussions on soldier’s load. Modern servicemen have a lot of gear to carry, and many do not believe carrying multiple knives is warranted. If you are going to carry a single fixed blade knife, then the weak-side pectoral position is a good place to place it. This influences the form of the “pec-knife”. Pec-knives are discussed in “Survival Weapons”, and their use in “Crash Combat”. The more general discussion of knife use for defence in “Attack, Avoid, Survive” are also relevant.
You sometimes see quite large knives carried in this position, but for most of us an overall length of less than eleven inches is more practical. There is a wide choice of fixed blade knives in this size range. Harder is finding a knife of sufficient thickness and robustness. If this is going to be a soldier’s primary blade then it must stand up to some rough treatment.

Gerber Strongarm

A few weeks back I encountered the Gerber Strongarm. This just seemed to shout “I will be a great pec-knife!” Just before Christmas I got an email telling me the variant I wanted was back in stock. Money was short, but I had had a rotten day and a few minutes before midnight I gave into temptation and ordered a Strongarm. It helped that the price listed was about 30% less than most other stockists! Would you believe it? I looked the next day and the price had jumped a big chunk. I had ordered just in time! A few days later the Gerber Strongarm arrived. I wish I had had the money for another, but as it is I may run out before the end of January. Buy books please, people!

The Sheath and Extras

An important component of a potential pec-knife is the sheath. This mode of carry is most convenient with the knife inverted and the pommel downwards. Obviously it is necessary that the knife is fully secure in this position, but still capable of being easily drawn when needed in a hurry. The sheath of the Stongarm has a large clip that engages a depression on the hilt. Note that this releases with an audible click, which may affect your tactics in some scenarios. In addition to the clip, the smaller-width hanging strap has a retention strap with a popper. The latter feature is one of the few I have issue with. This is a little tight, the slight increase in grip width my lanyard has added making it sometimes fiddly to close. The length of strap past the popper is also on the short side, and may be difficult to pull on if wearing some gloves. It may be necessary to sew an extension onto this part.
An important feature of this sheath is that it is ambidextrous, so the knife can be inserted securely with the edge either to the left or right. This is useful for a pec-knife, it being considered to be prudent to carry your knife with the main edge outwards, away from your throat.
A couple of accessories are included in the box. I have already mentioned that the smaller-width belt hanger has the retention strap. This affixes to the sheath by a strap and popper. A larger width belt hanger can be attached to the smaller by poppers. Both belt hanging loops have poppers, making the easy to detach or attach without rethreading a belt. A device that allows the sheath to be mounted horizontally is included, as is a device allowing easy attachment of the sheath to MOLLE/ RALS systems.

The Knife

The knife itself comes with either a semi-serrated or plain edge, and is available in either black or a more practical coyote brown shade. The blade is 4.8 inches long, and 3/16th thick. Overall length is 9.8 inches and weight is given as 7.9 oz. Blade material is 420HC stainless steel with a dark grey coating. Grip is a rubber coating over glass-reinforced nylon. There is a resemblance to Gerber’s LMF II knife. The LMF II is heavier (c.12 oz) and costs more. I have not handled a LMF II, but the Strongarm seems a better choice for the pec-knife role.
The butt of the Strongarm ends in a blunt triangular point that might serve for applications such as window breaking. This feature is thoughtfully provided with a lanyard hole. I know I have said this before (yesterday actually!) but it really is surprising how many expensive knives are not provided with provision for a lanyard or other features to reduce the chances of loss.

Making a Chest Rig

There are plenty of good reviews of the Strongarm out there, so I will concentrate on specifics of rigging it as a pec-knife. This is actually very simple. Obviously, you can mount the sheath directly on your webbing, but what if you are not wearing such? The Strongarm is potentially a very useful knife, and you may want it when you are not in full tactical gear. I have seen the Strongarm described as a “cross-over” knife, good for urban and wilderness.

Take about two metres of paracord. I know frugality is a virtue, but it is prudent to have a little too much rather than start again. The Strongarm sheath has a number of “screwholes” down each side. Pass one end of your paracord through a hole near the sheath mouth, and the other through a hole on the opposite side, second from the end. This should be made clear from the photos. Experiment with what arrangement suits you personally. Pull both ends of paracord so the middle makes a snug length across the front of the sheath. Now take both lengths, hold them together and tie a single knot in both. This can be an overhand knot but a figure-eight may be more comfortable when worn. You should have created a large loop with the knife sheath threaded on it. This loop should be large enough to pass your weak-side arm through, the knot sitting somewhere between your shoulder-blades. Take the long, free ends and form them into a second loop using the knot I call a “slip-bend” in my free book on knots. Place your other arm through this loop and tighten it by sliding the two parts of the slip-bend apart. The Strongarm sheath should be hanging just before your weak-side armpit. If you have the small-width belt hanger still attached this may be used to anchor the sheath to a belt, if you wish. Note the snap-link, added by a magnus-hitch. The lanyard can be attached to this when greater security is wanted. It also proves useful for holding other items. I later relocated the snap-link to below the sheath, where it helps keep it in position.
A chest-rig for a knife can cost tens or hundreds of dollars. This one is simple, lightweight, comfortable and costs just a couple of metres of paracord. If you like this, throw some of the money you have saved this way!
Categories
Phillosoph

A True Survival Bowie?

Sometimes a diversification can let us view a topic from another direction, casting new light on it.

Size Matters

The last blog made it clear to me that the many medium-sized (6 to 8") general-purpose knives that I have do not really have a role. That includes my beloved Buck 119 and the various five to eight inch kukris that I have acquired.
If SHTF or TEOTWAWKI occurs, I will be reaching for one of my larger blades and complementing it with one of my puukkot (plural of “puukko”).
I have my favourite ten-inch sirupate kukri ready to go on a belt alongside a Mora Companion. A small pouch on the belt contains a fire kit and Lansky multi-sharpener.
Nearby is my barong-handled machete and a crowbar, ready to be added to the rucksac.
Already on my person I have my Swiss Army knife and mini-Leatherman, along with other items.
If you are planning to spend good money on survival knives, the sound advice is to “go big” and “go-small”.
Buy yourself a good chopper that can produce a fire and shelter with minimum effort when they are most needed.
Get a good fixed blade small knife that can handle more intricate duties. Puukkot are hard to beat for value and quality. Get what folders you want for EDC.
Another topic I touched on was that most of the original Bowie knife designs were designed to be primarily weapons. This can be seen in the shape of their point profiles, which are often combined with a long false edge.

The Bowie/Machete

With the above in mind, I will share a passage I came across in “Gun Digest Book of Knives, 4th Edition”, p.111-113:
“Another category of knife is the hybrid Bowie…The Bowie/Machete is made by Collins Machete, Case Knife, Western Knife and Legendary Arms.
Bowie/Machete came about when a South American customer went to Collins and wanted a machete made like a Bowie knife.
The result was a wonderful knife. It is one of the finest large skinning and butcher knives ever made. It is one of the few knives that can hold its own with a commercial slaughterhouse curved skinner and large butcher knife. These purely single-purpose knives are hard to beat at their specialities, but the shape and curvature of the Collins design is a most useful compromise of their features in a large knife.
The oversize butcher knife shape with the Bowie clip blade has a deep enough belly and enough sweep at the point to approximate the sweep of the professional skinning knife. In the hands of an expert, it is the best knife for skinning and butchering large game. For use as a small machete, the deep grind employed on these knives allows the same cut a much thinner machete would make. While a little light and short for heavy woodcutting. this is still a practical short machete knife.
For a working knife to carry in South America where it was intended, or anywhere else for that matter, this is a hard one to beat. When used as a fighting knife, it is an excellent chopper, while its broad blade produces more damage on thrust than lesser knives…
It should be noted that the simple tapered grip with the pronounced neb to anchor the hand found on these is an elegant masterpiece of a functional grip in its own right. These knives feel good in the hand where they lock in and go to work naturally. The hand is positioned for proper leverage with a heavy double guard to bear against at the front and a neb at the rear similar to the grip taken with an Indian Talwar sword. It is most effective for a working knife and far better than gimmick grips on some custom knives. Remember. everything possible with knives has been tried. This is an old, standard, elegant solution to the grip. Like the rest of the knife. it is conservative and effective all the way through.”
This sounds interesting!
No image of the “Bowie/Machete” is in the book. There is a photo of a Legendary Arms Bowie that it might be, but unhelpfully the blade is in its sheath!
Websearching on “Bowie/Machete” proves useless.
The Cold Steel design of this name post-dates the book, and it is evident from the shape that the Cold Steel offering does not have the features described.
Cold Steel Bowie Machete

The Bowie/Machete Identified?

Eventually, I pieced together enough clues to suspect that the model described is the Collins & Co. Machete No.18.
Not actually a machete as most of us understand the term these days, but that was how the company designated it.
In 1942, the 10-inch Collins was adopted for survival kits of air crews operating in the Pacific, including at Guadalcanal Canal.
The marines took notice, and the model was widely used by the 2nd Marine Raider Battalion.
Maj. James Roosevelt, son of the then President, was involved in their procurement, and carried one numbered “30”.
One of my references, (“Fighting Knives. An Illustrated Guide to Fighting Knives and Military Survival Weapons of the World” by Frederick J. Stephens p.67) confirms that wartime production of this model was also undertaken by Case Cutlery, Western Cutlery and an Australian source.
“Knives of War” by Hughes, Jenkins and Buerlein adds a company called Kinfolks Inc to the list.
It is from Case that the frequently used, but incorrect designation “V44” or “V-44” seems likely to have been acquired. (The V42 discussed in the last blog was a Case design.)
Knives of War p.68-70 calls ithe No.18 a “Gung Ho Knife”, “Survival Bowie” and mentions an aviator’s example labelled “9-inch machete”.
Actual dimensions are given in Knives of War as a blade of 97⁄8" and 2" at its widest. Total Length is 14½".  I believe the blade was ¼" thick.
Minor variations between manufacturers can be found, variations including grip shape, grip construction and whether the false-edge was sharpened.
Some Collins examples had a grip of green horn, which has a very attractive camouflaged appearance.
Some sheathes had the tip cut-off to improve drainage.
Knives of War p.69: Former Marine Raider Rosenquist reports: “It was a real good, multi-purpose knife. We used it for opening ration cans, coconuts, cutting fire lanes, etc. It was handy as a small hatchet for cutting small trees and coconut-log bunkers and in combat as an effective fighting weapon.”Marine Bowie Horn handled Bowie Horn handled Bowie Black handled Bowie

The No.18 Today?

The No.18 is a Bowie design with a proven record of survival utility, not to mention it might also find its way to certain kitchens or meat-packing plants.
As well as its practicality, it has historical connections.
Many people understand the value of preparedness, and Americans love Bowies, so you might think a number of companies would be offering “Gung Ho/ No.18 Survival Bowies” and that they would be flying off the shelves!
Raider Bowie replica Raider Bowie box
Well, I have not had much luck locating any!
There is a reproduction “V44 Raider Bowie” (above). This is apparently low-quality steel, since it is intended to sit on a shelf rather than be put to use. Note that it is not a particular accurate reproduction, the blade having a single broad fuller rather than the two narrow fullers of the actual No.18.
No.18 Bowie Throwing Bowie
Legendary Arms offers a Bowie and a “Throwing Bowie” that has some resemblance (above), but note both have a short bevel grind rather than the blade section of the originals.
W49 Bowie
Western Cutlery is now Western Knives, with production in Asia. Their W49 (above) is/was not their version of the No.18. Dimensions are slightly smaller and the blade has a short bevel.
Ontario Bowie
Best candidate seems to be the Ontario SP10 “Marine Raider” (above). Despite the name, the blade form is different.
The Ontario SP53 is probably closer to the No.18 in spirit, but is not a Bowie.
Most obvious difference for both of these is the grip. I quite liked the machete-style grip of the original Collins.
As regular readers will appreciate, a flared or hooked grip is a very good feature for a chopping knife.

The Future?

Ideally, someone would bring out a nice No.18 Bowie blade blank that I could fit with a grip.
If anyone has been inspired by this to bring out a modern day No.18 Bowie, I would suggest having a good look at the modified original shown below.
The upper quillon has been removed and the lower bent so that it is out of the way when the strongest part of the blade is used for tasks such as batoning through material.
Horn handled No.18 Bowie
Categories
Phillosoph

Fighting Knives in a Modern Context

The other day, I found myself thinking about the variety of weapons taught by many martial arts.
When these arts were created, most of these weapons were relatively common place.
The battlefield, and the street, have changed since those times.
You are unlikely to fight with a sword, a knife or machete being more probable.
The entrenching tool is more likely to be to hand than an axe or mace.
Your spear or staff will seldom have to deal with a horseman, and is much handier if its length is less than your height.
The stick remains a useful weapon, but nowadays will often be wielded with the intention of not seriously injuring a foe.
Those of you that wisely have invested in a copy of “Crash Combat” will recognize the above as the arsenal of modern weapons included in the course.
The above reflection melded with a question my subconscious had recently posed to me: “Does one need a combat knife?”
Some authors use the term “combat knife” or “tactical knife” to mean a variety of multi-purpose knife.
In this blog, I am talking about specialist designs that have the primary role of use against two-legged predators.
Certainly, it is prudent to have a knife that one can fight with, but what are the merits of spending good money on a knife that is primarily designed as a weapon?
And what form should such a knife take?
There is a baffling variety of supposed combat or fighting knives.

Context

To answer that last point, we must return to the theme noted in the first paragraph.
We cannot really consider a fighting knife without also considering context. The requirements of a fighting knife have changed as the nature of combat has changed.
In the Middle Ages, for example, it was desirable that a blade be stout enough to deal with body armour, yet narrow enough to slip between plates or through a visor.
Jump forward to the age of the rapier, and a dagger might be required to serve as a main gauche.
The Bowie knife provides us with another illustration. The Bowie blade shape is commonly used for survival knives, which tends to make us forget the original Bowie knives were primarily fighting weapons.
The Bowie came into fashion in an era when pistols were generally single-shot. The Bowie was a handy alternative to a sabre or smallsword.
The fighting Bowie was at least eight inches long, with examples longer than twelve inches by no means unusual. A blade might be a quarter of an inch thick and broad enough to look like a pointed cleaver, which essentially was what it was.
A Bowie might be used against other knives, or longer edged weapons.
The usefulness of the Bowie waned with the increasing availability of mass-produced revolvers. Apparently many volunteers in the War Between the States invested in impressive Bowies, only to discard them once the wisdom of a lighter marching load became apparent.
There seems little point nowadays in carrying a large fighting knife such as a Bowie or smatchet.
Many large utility knives, billhooks and machetes can defend our person equally well and prove far more useful for other, more likely tasks.
You probably also own entrenching tools, hatchets and tomahawks that would also be superior weapons.

The Modern Fighting Knife

Let us assume that you want a fighting/combat/tactical knife, on the basis that you may one day perhaps need it.
The fighting knife will be carried in addition to more general-purpose blades, so cannot be too large or heavy.
If a fighting knife has a place in our arsenal, then logically it must be because it can meet a requirement or scenario better than our large survival knives and other tools.
Large knives are not particularly concealable.
While it is possible to thrust effectively with a machete or kukri, it is not the ideal shape for use against thick clothing and a hypothetical “take out the sentry” application.
These criteria narrow down the form that a modern fighting/tactical knife should take, and what we should be looking for when making our selection.
This is best illustrated with some examples.

Fairbairn-Sykes Commando Knife

No discussion of modern fighting knives would be complete without mention of the Fairbairn-Sykes knife, aka “The Commando Knife” or F-S.
If fighting knives are mentioned, this is most likely the image that popped into your head.
At the start of his book “Combat Use of the Double Edged Fighting Knife”, Rex Applegate gives a nice summary of desirable features for a modern fighting knife:
“The heart of the fighting knife is its blade. It should be 5 to 7 inches in length, double-edged, and wide enough to be razor sharp on both sides all the way back to the cross guard. The point must be sharp enough to penetrate and thick and tough enough to withstand side pressure.
The blade should provide slashing, ripping, and thrusting capabilities. Stainless type steel, correctly tempered, with a dull finish is preferable. The blade should be tempered to hold an edge as well as being easily sharpened and, at the same time, not brittle.
The oval-shape handle should fit the palm of the hand and be designed so that the edges of the blade can be immediately, and automatically, located in dark or light conditions. A nonslip surface is another feature that should be incorporated. The handle should not turn in the hand (sweaty palms, etc.) when the blade strikes resistance. The knife should be handle heavy with relation to balance. Nothing in the design should limit its possibilities for use as a weapon from any position or either hand. The overall length should be approximately 10 to 11 inches; anything longer makes it too unwieldy and cumbersome to carry. The weight should be in the 1/2 to 3/4 pound range.”
Applegate’s earlier work, “Kill or Get Kill”, has a similar description, although includes the suggestion that the blade be no more than an inch across at the guard, and that the handle have its largest diameter at the centre and taper towards both the guard as well as the butt.
Contrary to what you may often see claimed, the F-S is not the “Ultimate Fighting Knife” [ignoring that this is not what “ultimate” actually means!].
Comparison to Applegate’s description quickly illustrates why.
The grip of the F-S is round in section, rather oval. Being of cast metal, the grip is difficult to modify or replace.
While the balance point is in the grip, the cast grip possibly contributes some unnecessary weight.
Oddly, my F-S seems heavier than my M3, but is actually half an ounce lighter.
If you own an F-S, you will know that it is very difficult to get a sharp edge on it.
Common advice on the net is to regard the F-S as a thrusting weapon only, and steel the edge at an angle of about 40 degrees. The “razor-sharp commando knife” is a poetic licence of the novelist who has never owned one!
Some of these features seem to have been the result of wartime mass-production, which have persisted.
The F-S gets a lot right too! My step-son, on first holding an F-S declared:
“Woah! I feel like it wants me to do something, but I am not sure what!”
Fairbairn’s writings on how to use the F-S knife include illustrations of cuts and slashes directed to the forearm and inside of the elbow, although how practical this would have been against a woollen greatcoat or tunic is debatable.
Incidentally, the ancestors of the FS were the Shanghai Fighting Knives, which were made from obsolete double-edged Lee Metford 1888 bayonets. In Fairbairn's own words:
In choosing a knife there are two important factors to bear in mind: balance and keenness. The hilt should fit easily in your hand, and the blade should not be so heavy that it tends to drag the hilt from your fingers in a loose grip. It is essential that the blade have a sharp stabbing point and good cutting edges, because an artery torn through (as against a clean cut) tends to contract and stop the bleeding.

Boker Applegate-Fairbairn

Following World War Two, Applegate collaborated with Boker to produce a knife that met his requirements, called the Applegate-Fairbairn.
I have no personal experience of these, and they are likely to always be beyond my price range.

Gerber Mk II

The Gerber Mk II answers many of the complaints that can be made about the F-S.
While it is called the “Mk II Survival”, this is primarily a fighting knife.
Mine has taken a fairly respectable edge.
The bad news is that the Mk II tends to have a higher price tag than one might wish for a knife that will not be your primary survival tool.
It is rather baffling that copies or replicas of the Gerber Mk II are not commonplace!

M3 Trench Knife

Shown with my F-S and Gerber is my M3 Trench Knife.
The M3 was also produced in German as the “NATO Combat Knife”. This blade configuration has also been used for a variety of bayonets.
A nice design feature of the M3 is the asymmetrical guard, allowing the user to find the orientation of the main edge even in the dark.
While the M3 was designed as a utility knife, its configuration makes it a pretty good choice for a fighting knife. It compares very favourably to the Gerber Mk II in general size and features.
Personally, I do not mind that the M3 is not double-edged. The false edge comes already sharpened, and the balance of the knife is about an inch behind the guard, just where you would want it.
If you shop around, you can find reproduction M3s for a reasonable price.
Try websites that cater for WW2 re-enactors. Take a look at German trench knives while you are there.
In “Kill or Get Killed”, Applegate suggests “utility knives” can be reground into fighting knives, and shows a knife so converted. Presumably he means the M3, although he at one point claims that the utility knife has its weight too far forward in the blade.
The M3 as it comes is a pretty good fighting knife, with the option of serving in utility roles in an emergency.
Ideally, a fighting knife should only be used for its intended role, to keep it sharp.
Price of a reproduction M3 makes it a good basis for a custom project.
Blade blanks for M3s or the related bayonet models, may also be found.
As Applegate suggests, the top edge can be extended, and if you have a belt-grinder adding a hollow grind is relatively simple. Tapering the blade may be more challenging. Personally, I would not consider this necessary.
Adding a fuller to the unsharpened section might be considered.
The grip of leather washers is probably simple to reshape or remove. Grip tape may prove useful here.
The large metal butt-plate may be more problematic for a customisation project, A narrow pommel of similar configuration to that of the F-S or Mk II might be preferred.

The V42

The V42 is another wartime design of fighting knife.
The skull-crusher pommel is a nice feature, although probably larger than needed.
The leather padding applied to the upper side of the quillon is a nice feature.
I have seen claims the pommel on the originals had a tendency to catch on and damage equipment. I suspect the versions on replicas such as mine have been made blunter.
My main complaint about this knife is the guard could be narrower and the blade somewhat broader.

Smaller Fighting Knives

As implied above, your fighting knife should be chosen so that it can be carried in situations you cannot carry a larger survival knife.
With this in mind, I will present two smaller examples of what can be considered fighting/tactical knives.
The larger knife is a Smith and Wesson 820.
The false edge is not sharpened, but the main edge has sharpened up to a very sharp edge.
Very impressive, and a very reasonably priced knife with most of the features you might wish for.
The smaller knife is a CRKT version of the AG Russell Sting (as favoured by a well-known literary figure!).
Small, but very solid and sharp.
Note that both knives have lanyard holes, a feature that would be welcome on the larger knives.
Adding wrist loops is on my to-do list.
These are some of your off-the-shelf options, illustrated with examples I have to hand.
Later blogs will cover other options.
Categories
Phillosoph

Fruit Juice and Knives

A friend of mine has warned me she intends to bring me a knife for some attention. It needs sharpening, but also has some marks. Too much touching the blade and not enough (if any!) oiling.

Gentle Rust Removal

If you paid attention in Science class you will know that you can remove rust with acids such as vinegar. Often this leaves a discolouration, however.
An interesting technique I have used is to remove rust with pineapple juice. Pineapple juice is a very mild acid. If you soak a blade for a few days it gently removes rust patches, leaving much less discolouration. Something like a vase is ideal. Just submerge the blade in juice to the depth required. If you lack a vase then the juice carton itself may be a suitable shape. You may have to brace it so the weight of the knife does not cause it to topple over.
I have only ever used pineapple juice for this, but other fruit juices should work. I suspect grapefruit juice may be too strong, but that is just a guess and I may be wrong.

Fruit and Bread Knives

I was watching a movie recently and a character makes a comment about the wisdom of cutting tomatoes with a bread knife. I guessed this may have been due to most people not having genuinely sharp kitchen knives, but I ran the idea past a chef friend.
My chef friend agreed one should cut tomatoes with a bread knife, and that it should also be used for other acidic fruits such as lemons and limes.
His explanation was that the acid of the fruits prematurely blunted other types of kitchen knife. The serrated edge of a bread knife was less affected by this. He did note that many chefs he had worked with were unaware of this.
So, if you are cutting acidic fruits in your kitchen, reach for a bread knife or serrated blade, preferably one of stainless steel.
